Workshop Fitting Welding Machine ( SHG315 )
Workshop Fitting Welding Machine (SHG315)Application and features:> Suitable for fabricating elbow, tee, cross and Y shape (45° And 60 ° ) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.> Integrated struct......
Send Inquiry
Product Description

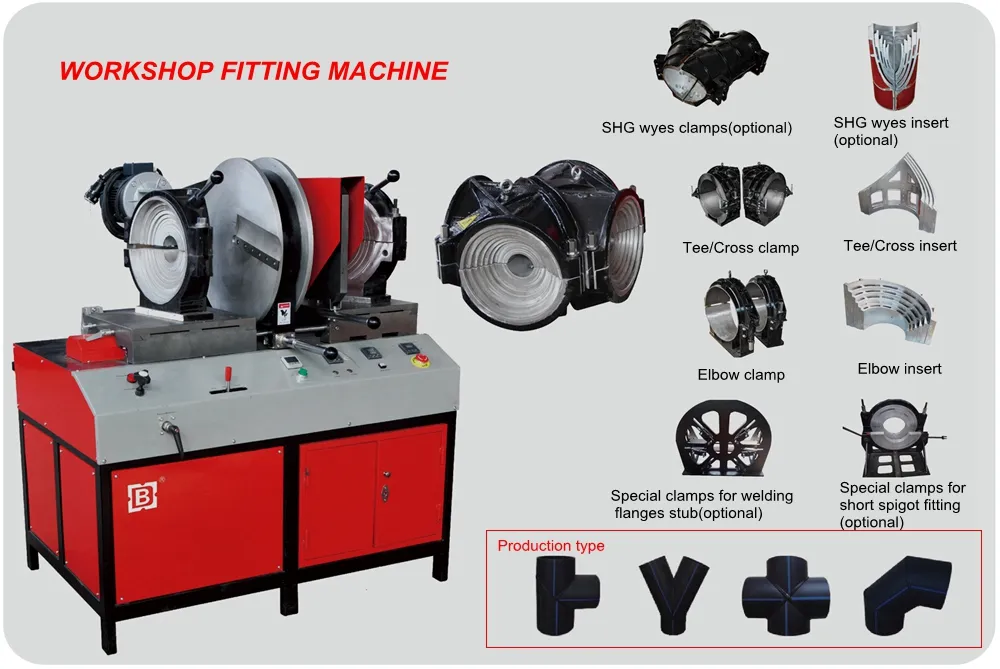

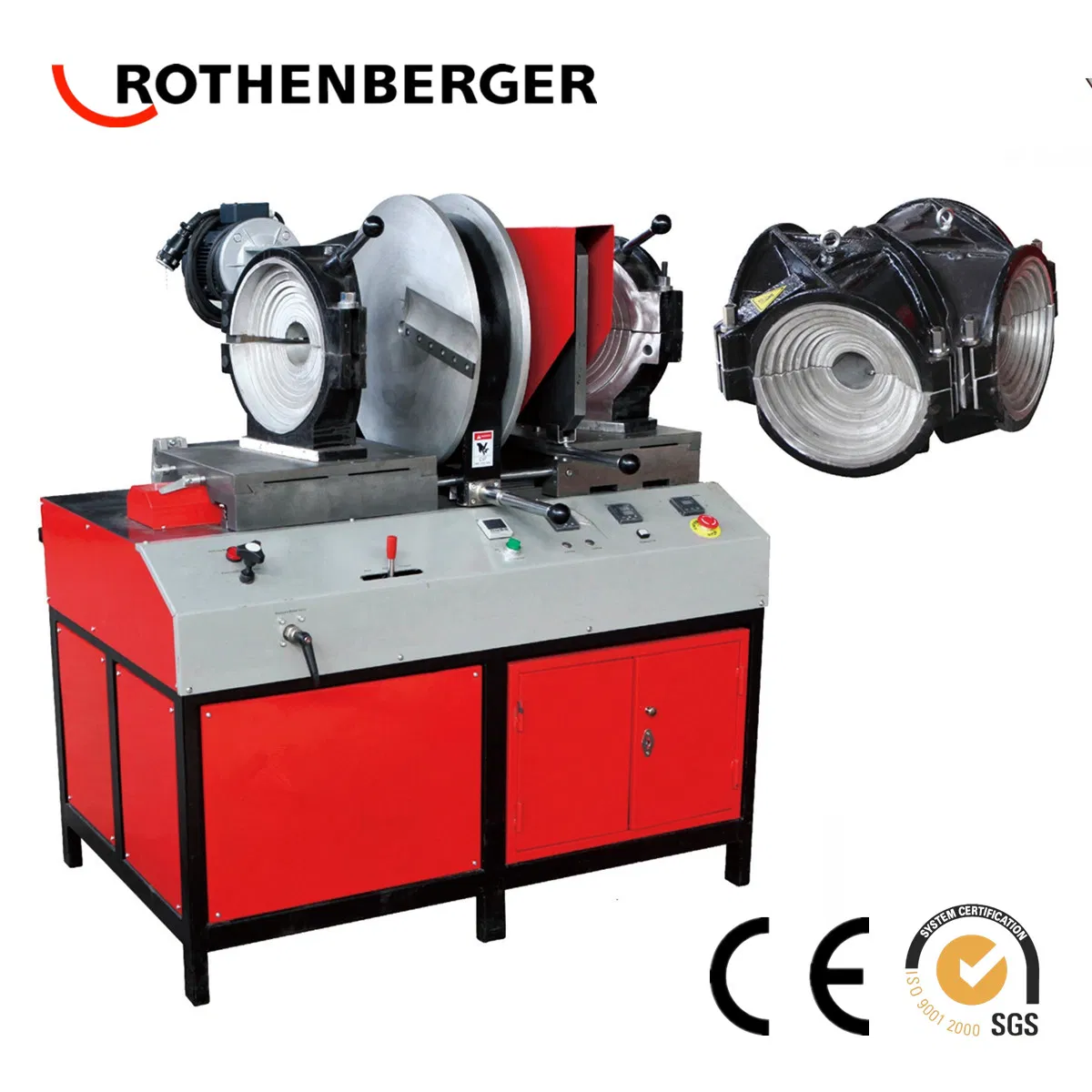

Workshop Fitting Welding Machine (SHG315)
Application and features:
> Suitable for fabricating elbow, tee, cross and Y shape (45° And 60 ° ) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
> Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
> Removable PTFE coated heating plate
> Electric planing tool with safety limit switch
> Low starting pressure and high reliable seal structure
> Separate two-channel timer records times in soaking and cooling phases.
> High-accurate and shockproof pressure meter indicates clearer readings. Digital pressure meter is installed on machines above SHG 315
> SHG315 Pivoting planning tool and heating plate bring convenience to placing and removing.
> Products comply with 98/37/EC and 73/23/EEC standards
Optional parts:
> Special clamps for welding flange stub
> Special clamps for short spigot fitting
> Special clamps for welding Y shape (45° And 60 ° ) fitting
Technical parameters
Certificate
Company

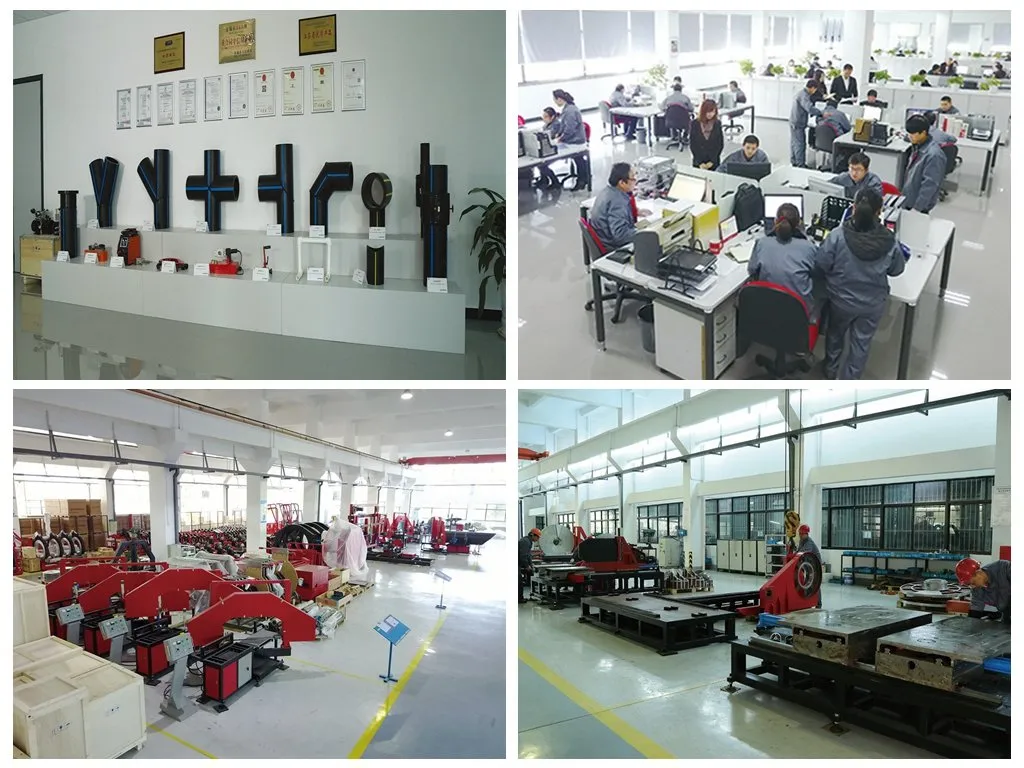

Our company is the leader manufacturer of butt fusion equipment in china.We occupy the 70% domestic market and export to more than 45 countries.we specialize in producing a complete range of international standard butt fusion equipment including field welding machine,workshop fitting machine,pipe saw,all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
In 2015, my company joined German ROTHENBERGER tools group, becoming one of the more than 50 companies under the first European big pipe tool production and sellers. with the German headquarters and subsidiaries throughout the world to work together, we will further development of domestic and international market.
Application and features:
> Suitable for fabricating elbow, tee, cross and Y shape (45° And 60 ° ) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
> Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings
> Removable PTFE coated heating plate
> Electric planing tool with safety limit switch
> Low starting pressure and high reliable seal structure
> Separate two-channel timer records times in soaking and cooling phases.
> High-accurate and shockproof pressure meter indicates clearer readings. Digital pressure meter is installed on machines above SHG 315
> SHG315 Pivoting planning tool and heating plate bring convenience to placing and removing.
> Products comply with 98/37/EC and 73/23/EEC standards

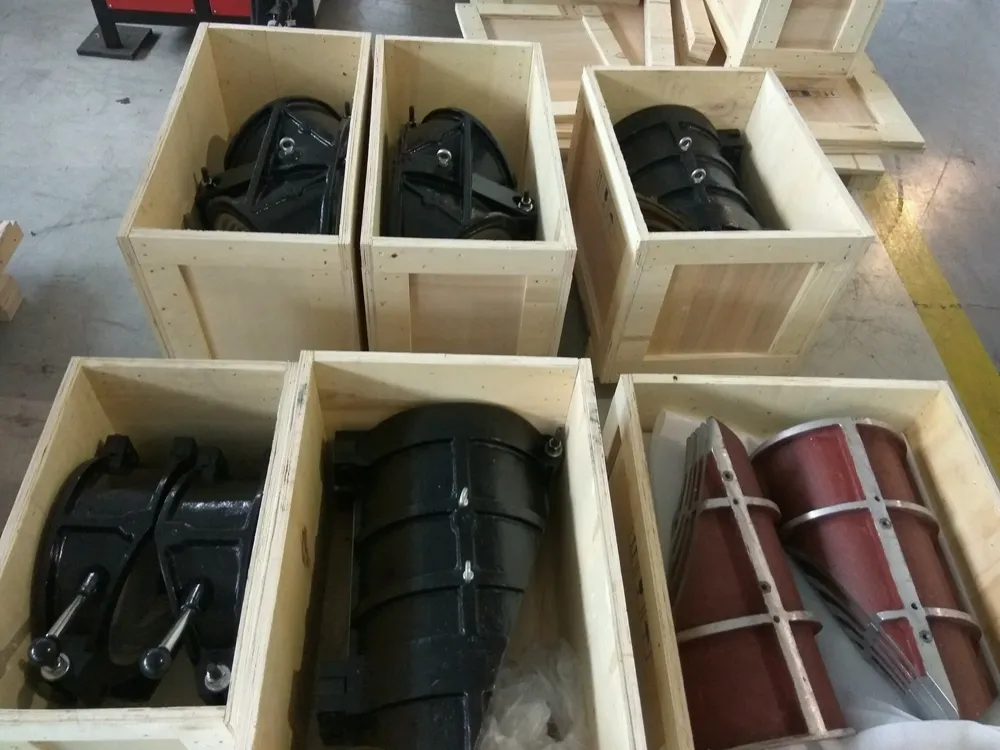

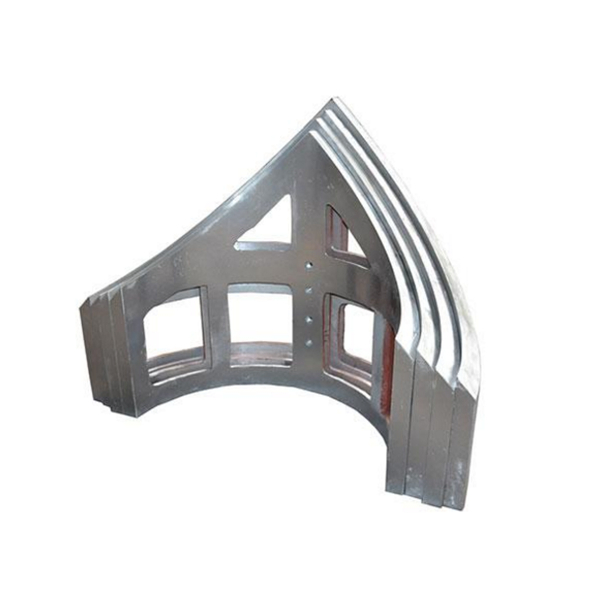

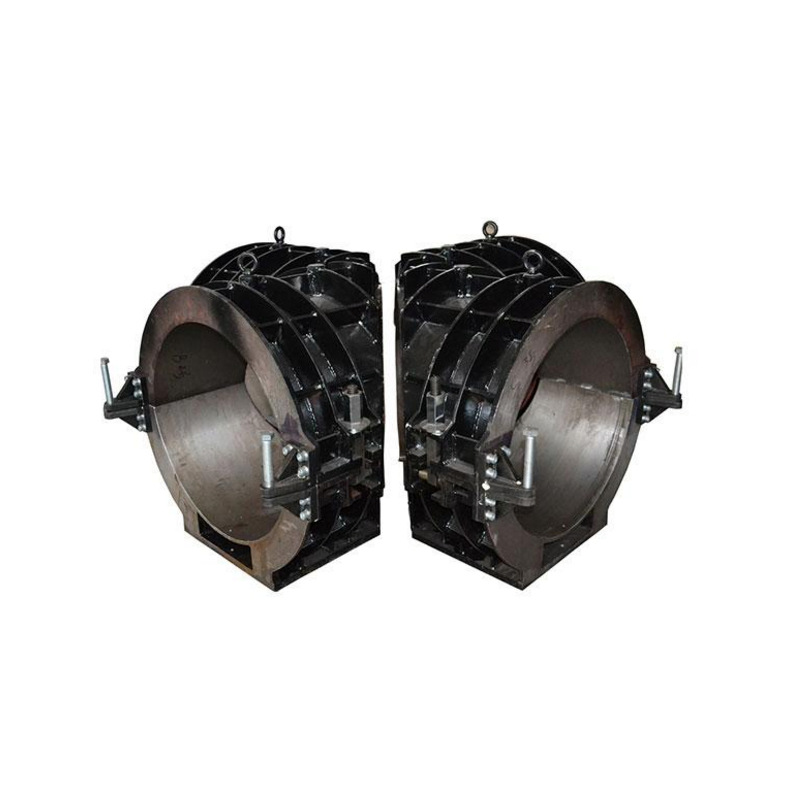

Optional parts:
> Special clamps for welding flange stub
> Special clamps for short spigot fitting
> Special clamps for welding Y shape (45° And 60 ° ) fitting
Technical parameters
| SHG315 | |
| Welding scope (mm) | 90,110,125,140,160,100,000,000,000,000,000 |
| The welding type | 0-90 ° elbow, tee, cross; 45 °, 60 ° wyes(optional parts should be used) |
| The highest temperature heating plate (ºC) | 270 |
| The heating plate surface temperature difference (170-250ºC) (ºC) | ≤±7 |
| Use the power supply (V,Hz) | 380, 50 |
| The heating plate power (kW) | 5 |
| The heating plate power (kW) | 1.5 |
| Hydraulic total power (kW) | 0.75 |
| The total power (kW) | 7.25 |
| The weight (not including the optional parts) (kg) | 884 |
