Rothenberger Workshop Fitting Welding Machine ( SHG315 )
ROTHENBERGER Workshop Fitting Welding Machine (SHG315) 1 Workshop plastic fitting welding Machine2 fabricating PE PP PVDF fittings3 Pipe size: 90~315mm4 elbow, cross, tee, SHG315 Workshop plastic Fitting Fusion Welding Machine for making elbow tee cross hdpe pipe fittings , workshop fitting fusio......
Send Inquiry
Product Description

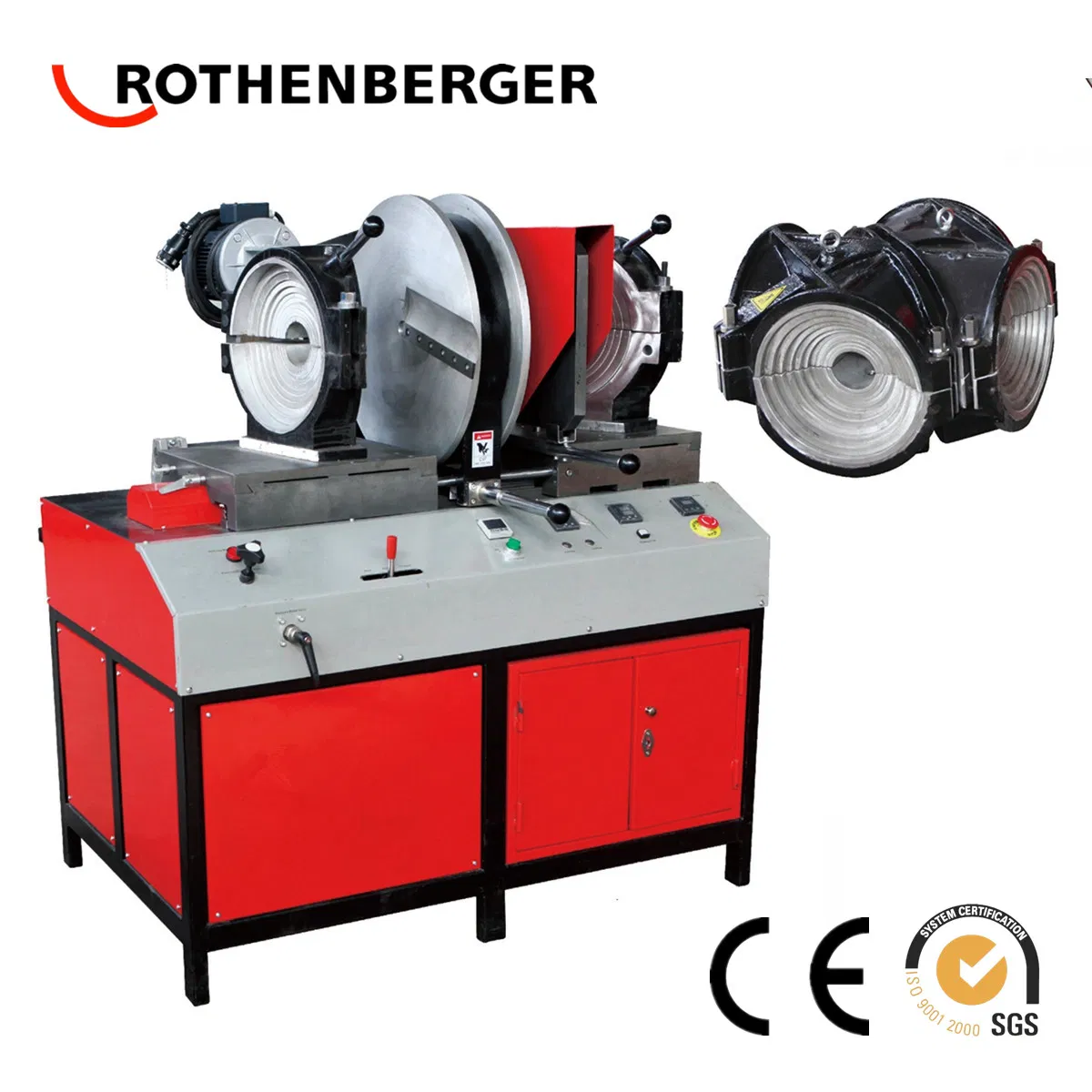

ROTHENBERGER Workshop Fitting Welding Machine (SHG315)
2 fabricating PE PP PVDF fittings
3 Pipe size: 90~315mm
4 elbow, cross, tee,
SHG315 Workshop plastic Fitting Fusion Welding Machine for making elbow tee cross hdpe pipe fittings , workshop fitting fusion machine, workshop fitting welding machine,angle fitting welding machine,table butt fusion machine,fitting fabrication machine
* Suitable for fabricating elbow, tee, cross and Y shape (45 degrees and 60 degrees) fittings of PE, PP, PVDF in workshop. Also used to lengthen the injection moulded fitting or make the integrated fittings.
* Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings.
* Removable PTFE coated heating plate.
* Electric planing tool with safety limit switch.
* Low starting pressure and high reliable seal structure.
* Separate two-channel timer records times in soaking and cooling phases.
* High-accurate and shockproof pressure meter indicates clearer readings. Digital pressure meter
is installed on machines above SHG315.
* SHG315 pivoting planing tool and heating plate bring convenience to placing and removing.
* Products comply with 98/37/EC and 73/23/EEC standards.

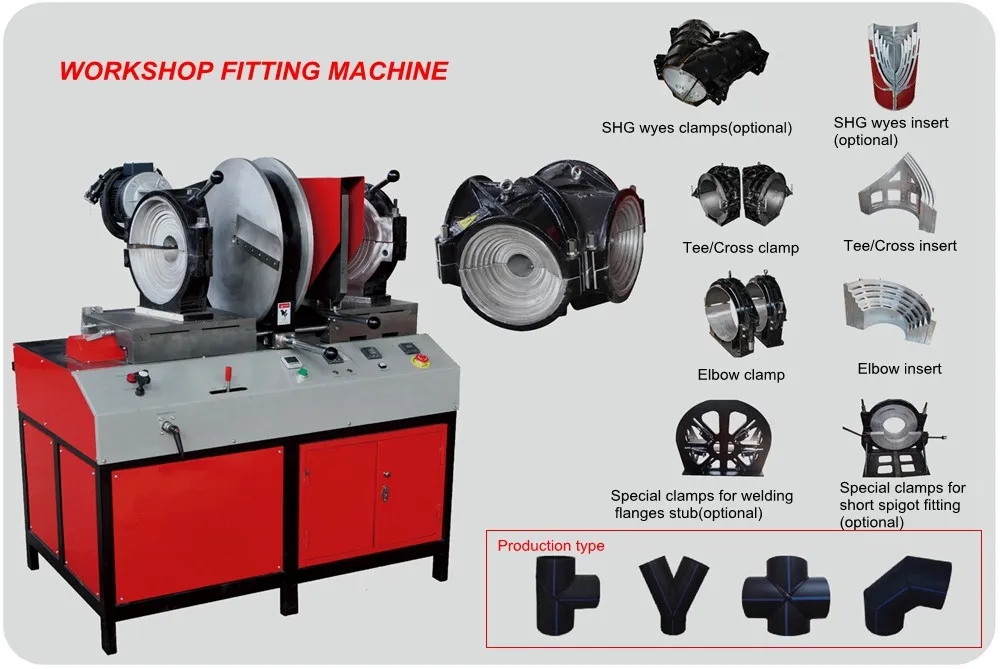

Optional parts

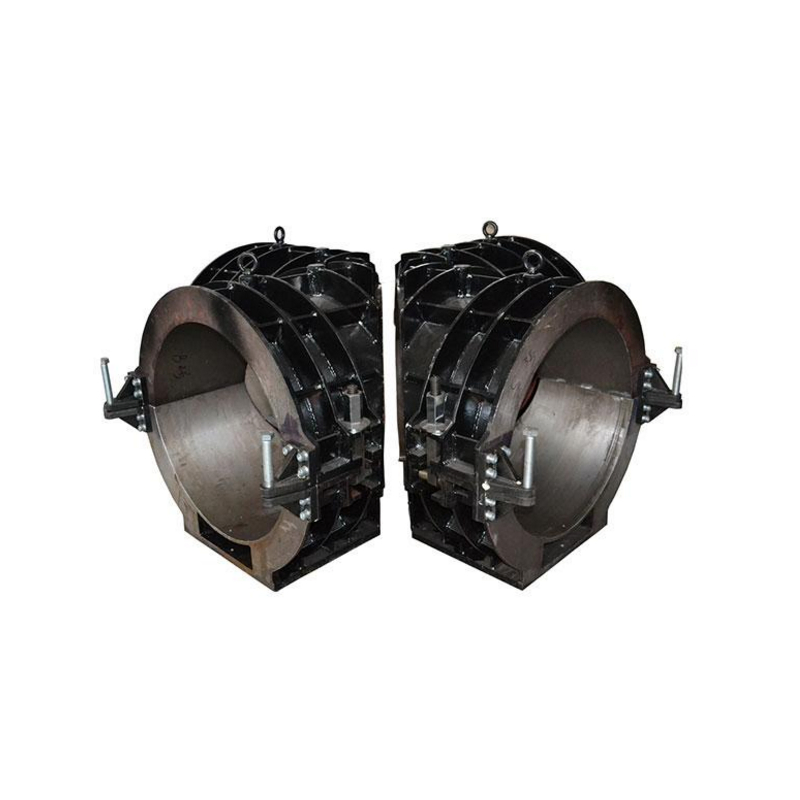

*Special clamps for welding flange stub.
*Special clamps for short spigot fitting.

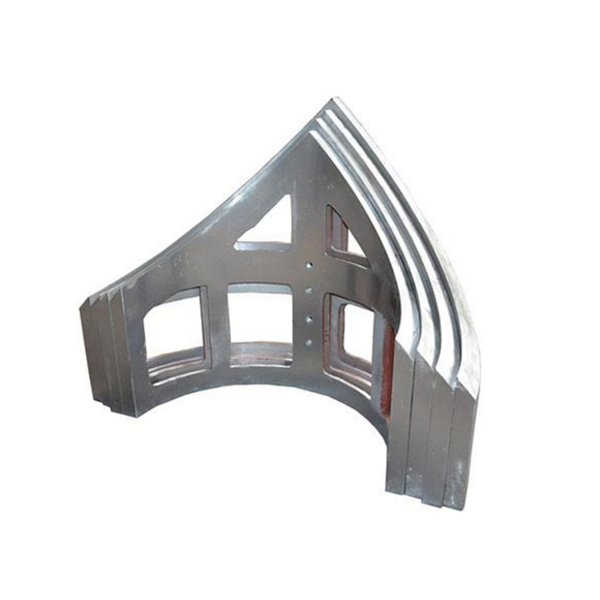

*Special clamps for welding Y shape (45 degrees and 60 degrees) fittings.
| Model | SHG315 | |
| Pipe size(mm) | 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315 | |
| Application | 0~90 degrees elbow, tee, cross, 45 degrees 60degrees Wyes (Optional parts should be used) | |
| Heating plate max. temp. | 270 degrees C | |
| Temp. deviation in surface(170-250 degrees C) | ≤ ± 7 degrees C | |
| Pressure adjustable ranges | 0~6.3 MPa | |
| Working voltage | 380 V, 50 Hz | |
| Heating plate power | 5.15 KW | |
| Planing tool power | 0.75 KW | |
| Hydraulic unit power | 1.5 KW | |
| Total power | 7.4 KW | |
| Total weight | 884 KGS | |

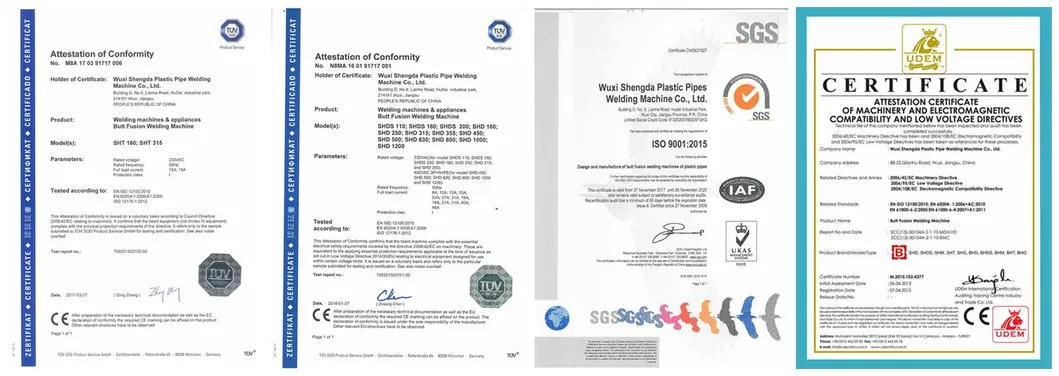

certificate

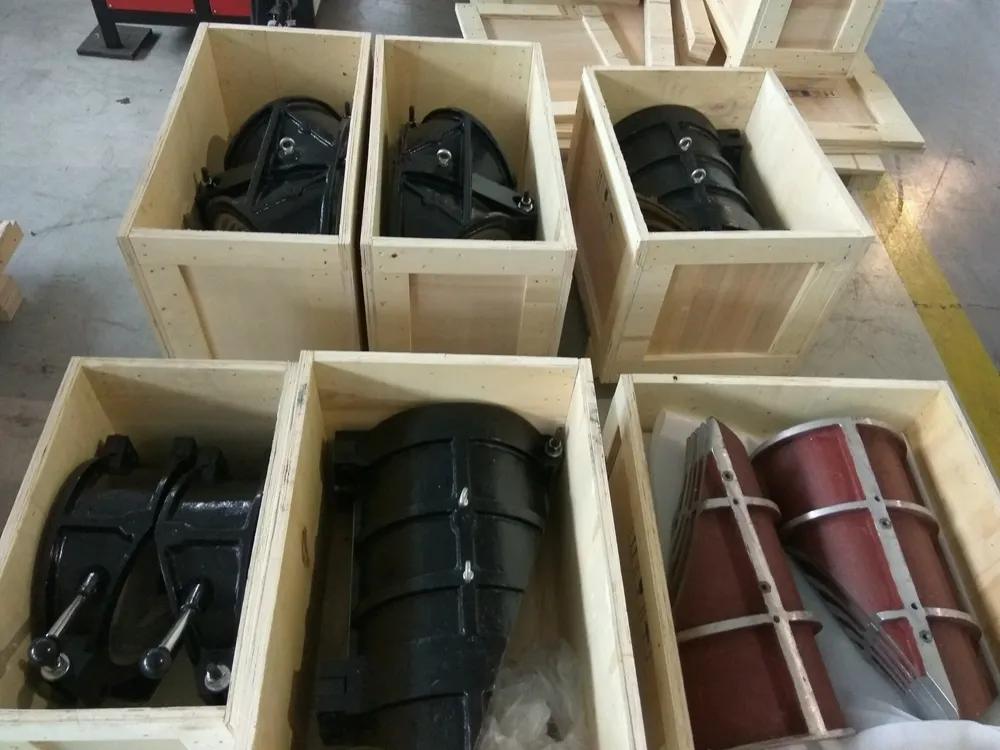

Packing cases

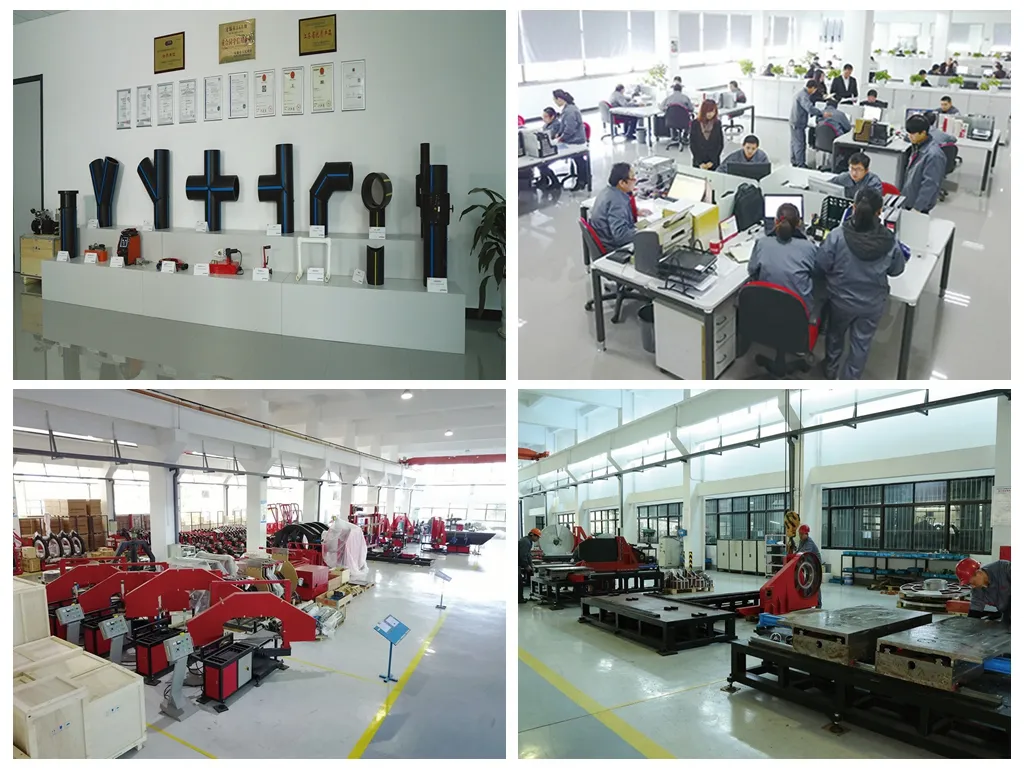

Company
Our company is the leader manufacturer of butt fusion equipment in china.We occupy the 70% domestic market and export to more than 45 countries.we specialize in producing a complete range of international standard butt fusion equipment including field welding machine,workshop fitting machine,pipe saw,all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
In 2015, my company joined German ROTHENBERGER tools group, becoming one of the more than 50 companies under the first European big pipe tool production and sellers. with the German headquarters and subsidiaries throughout the world to work together, we will further development of domestic and international market.
Packing cases
Company
Our company is the leader manufacturer of butt fusion equipment in china.We occupy the 70% domestic market and export to more than 45 countries.we specialize in producing a complete range of international standard butt fusion equipment including field welding machine,workshop fitting machine,pipe saw,all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.
In 2015, my company joined German ROTHENBERGER tools group, becoming one of the more than 50 companies under the first European big pipe tool production and sellers. with the German headquarters and subsidiaries throughout the world to work together, we will further development of domestic and international market.
